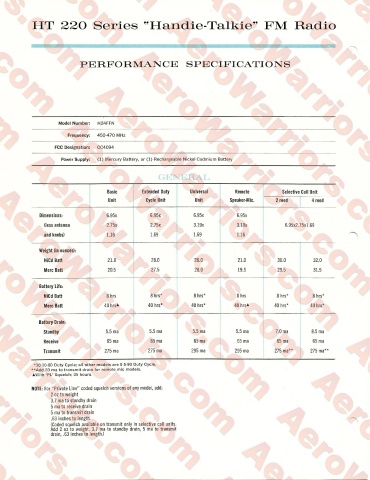

HT 220 Series ’’Handie-Talkie” FM Radio

PERFORMANCE SPECIFICATIONS

Model Number: H24FFN

Frequency: 450-470 MHz
FCC Designation: CC4094
Power Supply: (1) Mercury Battery, or (1) Rechargeable Nickel-Cadmium Battery

Basic Extended Duty Universal Remote Selective Call Unit
Unit Cycle Unit Unit Speaker-Mic. 2 reed 4 reed

Dimensions: 6.95x 6.95x 6.95x 6.95x
(less antenna 2.75x 2.75x 3.19x 3.19x 6.95x2.75x1.69
and knobs) 1.16 1.69 1.69 1.16

Weight (in ounces):
NiCd Batt 21.0 28.0 28.0 21.0 30.0 32.0
Merc Batt 20.5 27.5 28.0 19.5 29.5 31.5

Battery Life:
NiCd Batt 8 hrs 8 hrs* 8 hrs* 8 hrs 8 hrs* 8 hrs*
Merc Batt 40 hrsA 40 hrs* 40 hrs* 40 hrs 40 hrs* 40 hrs*

Battery Drain:
Standby 5.5 ma 5.5 ma 5.5 ma 5.5 ma 7.0 ma 8.5 ma
Receive 65 ma 65 ma 65 ma 65 ma 65 ma 65 ma
Transmit 275 ma 275 ma 295 ma 295 ma 275 ma** 275 ma**

*10-10-80 Duty Cycle; all other models are 5-5-90 Duty Cycle.
**Add 20 ma to transmit drain for remote mic models.
AWith ‘PL’ Squelch; 35 hours.

NOTE: For “Private Line” coded squelch versions of any model, add:
2 oz to weight
3.7 ma to standby drain
5 ma to receive drain
5 ma to transmit drain
.63 inches to length
(Coded squelch available on transmit only in selective call units.
Add 2 oz to weight, 3.7 ma to standby drain, 5 ma to transmit
drain, .63 inches to length.)
