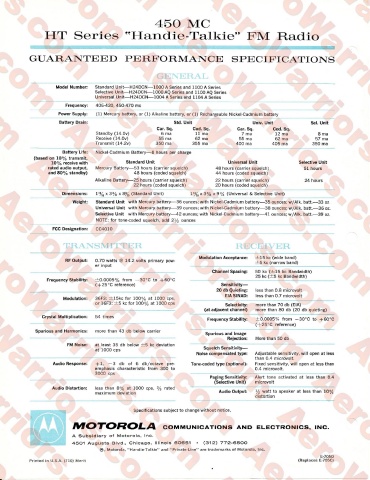

450 MC

                HT Series "Handie-Talkie” FM Radio



           GUARANTEED PERFORMANCE SPECIFICATIONS




                   Model Number: Standard Unit—H24DCN—1000 A Series and 1100 A Series
                                Selective Unit—H24DCN—1000 AQ Series and 1100 AQ Series
                                 Universal Unit—H24DCN—1004 A Series and 1104 A Series
                       Frequency:  406-420, 450-470 me
                    Power Supply:  (1) Mercury battery, or (1) Alkaline battery, or (1) Rechargeable Nickel-Cadmium battery
                     Battery Drain:                       Std. Unit                 Univ. Unit          Sei. Unit
                                                     Car. Sq.    Cod. Sq.      Car. Sq.    Cod. Sq.
                                 Standby (14.Ov)      6 ma       11 ma           7 ma       12 ma         8 ma
                                 Receive (14.Ov)     55 ma       62 ma          55 ma       62 ma        57 ma
                                 Transmit (14.2v)   350 ma       355 ma        400 ma      405 ma       350 ma
                      Battery Life:   Nickel-Cadmium Battery—8 hours per charge
            (based on 10% transmit,
                  10% receive with         Standard Unit                    Universal Unit          Selective Unit
                 rated audio output,   Mercury Battery—53 hours (carrier squelch)   48 hours (carrier squelch)   51 hours
                 and 80% standby)            48 hours (coded squelch)   44 hours (coded squelch)
                                Alkaline Battery—25 hours (carrier squelch)   22 hours (carrier squelch)   24 hours
                                             22 hours (coded squelch)   20 hours (coded squelch)
                      Dimensions:  1% x   x % (Standard Unit)   1% x 3% x 9% (Universal & Selective Unit)
                         Weight:  Standard Unit with Mercury battery—36 ounces; with Nickel-Cadmium battery—35 ounces; w/Alk. batt.—33 oz
                                 Universal Unit with Mercury battery—39 ounces; with Nickel-Cadmium battery—38 ounces; w/Alk. batt.—36 oz.
                                 Selective Unit with Mercury battery—42 ounces; with Nickel-Cadmium battery—41 ounces; w/Alk. batt.—39 oz.
                                 NOTE: for tone-coded squelch, add 2% ounces
                  FCC Designation: CC4010




                                                                   Modulation Acceptance:  ±15 kc (wide band)
                       RF Output: 0.70 watts @ 14.2 volts primary pow­               ±5 kc (narrow band)
                                er input
                                                                       Channel Spacing:  50 kc (±15 kc Bandwidth)
                                                                                     25 kc (±5 kc Bandwidth)
                Frequency Stability: ±0.0005% from —30°C to + 60°C
                                 ( + 25°C reference)                      Sensitivity—
                                                                         20 db Quieting:   less than 0.8 microvolt
                                                                           EIA SINAD:  less than 0.7 microvolt
                      Modulation:   36F3: ±15kc for 100% at 1000 cps,
                                or 16F3: ±5 kc for 100% at 1000 cps
                                                                           Selectivity:  more than 70 db (EIA)
                                                                     (at adjacent channel)  more than 80 db (20 db quieting)
               Crystal Multiplication: 54 times
                                                                     Frequency Stability:  ±0.0005% from -30°C to +60°C
                                                                                     (+25°C reference)
             Spurious and Harmonics: more than 43 db below carrier
                                                                     Spurious and Image
                                                                            Rejection:  More than 50 db
                       FM Noise: at least 35 db below ±5 kc deviation
                                at 1000 cps                         Squelch Sensitivity—
                                                                  Noise compensated type:  Adjustable sensitivity, will open at less
                                                                                     than 0.4 microvolt.
                   Audio Response:  + 1, —3 db of 6 db/octave pre­  Tone-coded type (optional):  Fixed sensitivity, will open at less than
                                emphasis characteristic from 300 to                  0.4 microvolt.
                                3000 cps
                                                                      Paging Sensitivity:   Alert tone activated at less than 0.4
                                                                        (Selective Unit)  microvolt
                  Audio Distortion:  less than 8% at 1000 cps, % rated
                                maximum deviation                        Audio Output:  % watt to speaker at less than 10%
                                                                                     distortion
                                             Specifications subject to change without notice.


                         MOTOROLA COMMUNICATIONS AND ELECTRONICS, INC.
                         A Subsidiary of Motorola, Inc.
                         4-501 Augusta Blvd., Chicago, Illinois 60651   •   (312) 772-6500
                                  ®, Motorola, "Handie-Talkie” and "Private-Line” are trademarks of Motorola, Inc.
                                                                                                           E-705D
           Printed in U.S.A. (710) Merit                                                            (Replaces E-705C)
