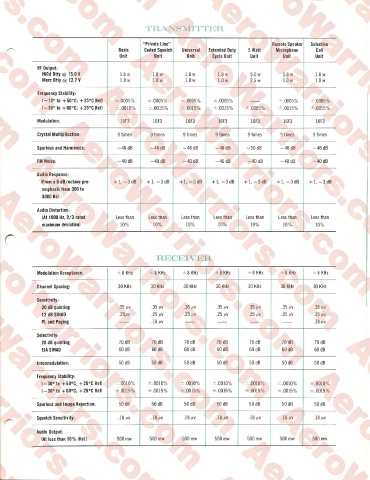

                                                “Private Line”                             Remote Speaker  Selective
                                        Basic    Coded Squelch   Universal  Extended Duty  5 Watt  Microphone  Call
                                         Unit       Unit       Unit    Cycle Unit   Unit       Unit      Unit

             RF Output:
               NiCd Btty @ 15.0 V        1.8 w     1.8 w      1.8 w      1.8 w      5.0 w      1.8 w     1.8 w
               Merc Btty @ 12.7 V        1.0 w      1.0 w     1.0 w      l.Ow       2.5 w      1.0 w     l.Ow

             Frequency Stability:
               (-10° to +50°C; + 25°CRef)   ±.0005%  ±.0005%  ±.0005%   ±.0005%              ±.0005%    ±.0005%
               (-30° to +60°C; +25°CRef)  ±.0015%  ±.0015%   ±.0015%    ±.0015%   ±.0005%    ±.0015%    ±.0015%
             Modulation:                 16F3       16F3      16F3       16F3       16F3       16F3      16F3

             Crystal Multiplication:    9 times    9 times    9 times   9 times    9 times    9 times   9 times

             Spurious and Harmonics:    -46 dB     -46 dB    -46 dB     -46 dB     -50 dB     -46 dB    -46 dB

             FM Noise:                  -40 dB     -40 dB    -40 dB     -40 dB     -40 dB     -40 dB    -40 dB

             Audio Response:
               (From a 6 dB/octave pre­  + 1, —3 dB  + 1, —3 dB  + 1, —3 dB  + 1, —3 dB  + 1, —3 dB  + 1, —3 dB  + 1, —3 dB
               emphasis from 300 to
               3000 Hz)

             Audio Distortion:
               (At 1000 Hz, 2/3 rated   Less than  Less than   Less than  Less than   Less than  Less than  Less than
               maximum deviation)        10%        10%       10%        10%        10%        10%       10%





                                                     RECEIVER

             Modulation Acceptance:     ±8 KHz     ±8 KHz    ±8 KHz     ±8 KHz     ±8 KHz     ±8 KHz    ±8 KHz

             Channel Spacing:           30 KHz     30 KHz     30 KHz    30 KHz     30 KHz     30 KHz     30 KHz

             Sensitivity:
               20 dB quieting           .35 w      .35 /zv    .35 /zv    .35 /zv   .35 /zv    .35 /zv    .35 /zv
               12 dB SINAD              .25/zv     .25 /zv    .25 /zv    .25 /zv   .25 /zv    .25 /zv    .25 /zv
               PL and Paging                       .18 /zv                                               .18 /zv

             Selectivity:
               20 dB quieting           70 dB      70 dB      70 dB      70 dB     70 dB      70 dB      70 dB
               EIASINAD                 60 dB      60 dB      60 dB      60 dB     60 dB      60 dB      60 dB
             Intermodulation:           50 dB      50 dB      50 dB      50 dB     50 dB      50 dB      50 dB

             Frequency Stability:
               (-30° to +50°C; +25°C Ref)   ±.0010%  ±.0010%  ±.0010%  ±.0010%    ±.0010%    ±.0010%   ±.0010%
               (-30° to +60°C; +25°CRef)  ±.0015%  ±.0015%   ±.0015%   ±.0015%    ±.0015%    ±.0015%    ±.0015%

             Spurious and Image Rejection:  50 dB  50 dB      50 dB      50 dB     50 dB      50 dB      50 dB

             Squelch Sensitivity:       .18 /zv    .18 /zv    .18 /zv    .18 /zv   .18 /zv    .18 /zv    .18 /zv

             Audio Output:
               (At less than 10% dist.)  500 mw   500 mw     500 mw     500 mw     500 mw    500 mw     500 mw
