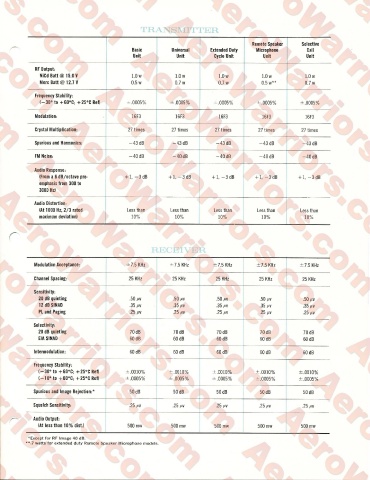

Remote Speaker   Selective
                                             Basic        Universal    Extended Duty  Microphone      Call
                                             Unit          Unit         Cycle Unit      Unit          Unit

             RF Output:
              NiCd Batt @ 15.0 V             1.0 w         1.0 w         1.0 w          1.0 w         1.0 w
              Merc Batt @ 12.7 V            0.5 w          0.7 w         0.7 w         0.5 w**        0.7 w
             Frequency Stability:
              (-30° to +60°C; + 25°C Ref)  ±.0005%       ±.0005%        ±.0005%       ±.0005%       ±.0005%

             Modulation:                     16F3          16F3          16F3           16F3          16F3
             Crystal Multiplication:       27 times       27 times      27 times      27 times       27 times

             Spurious and Harmonics:        -43 dB        -43 dB        -43 dB         -43 dB        -43 dB

             FM Noise:                      -40 dB        -40 dB        -40 dB         -40 dB        -40 dB

            Audio Response:
              (From a 6 dB/octave pre­    + 1, — 3 dB    + 1, —3 dB    + 1, —3 dB    + 1, — 3 dB    + 1, —3 dB
              emphasis from 300 to
              3003 Hz)

            Audio Distortion:
              (At 1000 Hz, 2/3 rated       Less than     Less than      Less than     Less than     Less than
              maximum deviation)            10%            10%           10%           10%            10%








            Modulation Acceptance:         ±7.5 KHz      ±7.5 KHz      ±7.5 KHz       ±7.5 KHz      ±7.5 KHz

            Channel Spacing:                25 KHz        25 KHz        25 KHz         25 KHz        25 KHz

            Sensitivity:
              20 dB quieting                .50 /xv       .50 /xv        .50 /xv       .50 /xv       .50 /xv
              12 dB SINAD                   .35 /xv       .35 /xv        .35 /xv       .35 /xv       .35 /xv
              PL and Paging                 .25 /xv       .25 /xv        .25 /xv       .25 /xv       .25 /xv

            Selectivity:
              20 dB quieting                70 dB         70 dB          70 dB         70 dB         70 dB
              EIASINAD                      60 dB         60 dB          60 dB         60 dB         60 dB

            Intermodulation:                60 dB         60 dB          60 dB         60 dB         60 dB

            Frequency Stability:
              (-30° to +60°C; +25°CRef)    ±.0010%       ±.0010%       ±.0010%       ±.0010%        ±.0010%
              (-10° to +60°C; +25°C Ref)  ±.0005%        ±.0005%       ±.0005%       ±.0005%        ±.0005%
            Spurious and Image Rejection:*  50 dB         50 dB          50 dB         50 dB         50 dB

            Squelch Sensitivity:            .25 /xv       .25 /xv       .25 /xv        .25 /xv       .25 /xv

            Audio Output:
              (At less than 10% dist.)     500 mw         500 mw        500 mw        500 mw        500 mw

          * Except for RF Image 40 dB.
          **.7 watts for extended duty Remote Speaker Microphone models.
