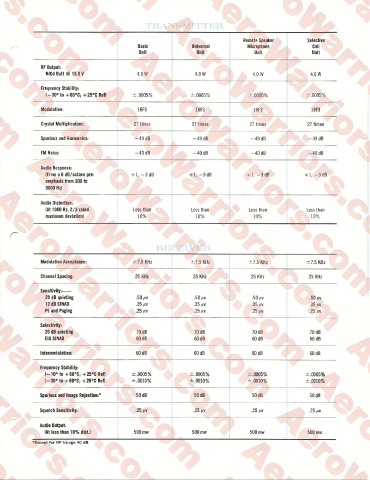

Remote Speaker Selective
Basic Universal Microphone Call
Unit Unit Unit Unit

RF Output:
NiCd Batt @ 15.0 V 4.0 W 4.0 W 4.0 W 4.0 W

Frequency Stability:
(-30° to +60°C; +25°C Ref) ±.0005% ±.0005% ±.0005% ±.0005%

Modulation: 16F3 16F3 16F3 16F3

Crystal Multiplication: 27 times 27 times 27 times 27 times

Spurious and Harmonics: -49 dB -49 dB -49 dB -49 dB

FM Noise: -40 dB -40 dB -40 dB -40 dB

Audio Response:
(From a 6 dB/octave pre­ + 1, —3 dB + 1, —3 dB + 1, —3 dB + 1, —3 dB
emphasis from 300 to
3000 Hz)

Audio Distortion:
(At 1000 Hz, 2/3 rated Less than Less than Less than Less than
maximum deviation) 10% 10% 10% 10%

Modulation Acceptance: ±7.5 KHz ±7.5 KHz ±7.5 KHz ±7.5 KHz

Channel Spacing: 25 KHz 25 KHz 25 KHz 25 KHz

Sensitivity:-----
20 dB quieting .50/xv .50 /xv .50/xv .50/xv
12 dB SINAD .35 /xv .35 fiv .35 /xv .35 /xv
PL and Paging .25 w .25 /xv .25 /xv .25 /xv

Selectivity:
20 dB quieting 70 dB 70 dB 70 dB 70 dB
EIA SINAD 60 dB 60 dB 60 dB 60 dB

Intermodulation: 60 dB 60 dB 60 dB 60 dB

Frequency Stability:
(-10° to +60°C; +25°CRef) ±.0005% ±.0005% ±.0005% ±.0005%
(-30° to +60°C; +25°C Ref) ±.0010% ±.0010% ±.0010% ±.0010%

Spurious and Image Rejection:* 50 dB 50 dB 50 dB 50 dB

Squelch Sensitivity: .25 ftv .25 /xv .25 /xv .25 /xv

Audio Output:
(At less than 10% dist.) 500 mw 500 mw 500 mw 500 mw
Except for RF Image 40 dB
