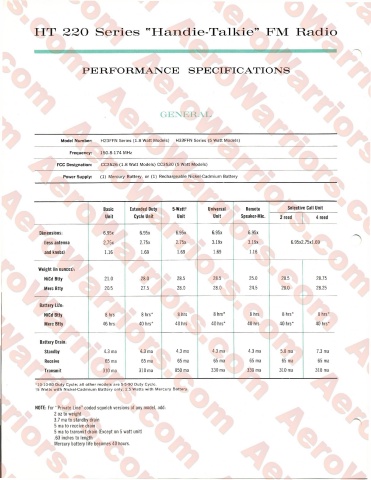

HT 220 Series ’’Handie-Talkie” FM Radio






                            PERFORMANCE SPECIFICATIONS







                                                      GENERAL




                     Model Number:   H23FFN Series (1.8 Watt Models) H33FFN Series (5 Watt Models)
                        Frequency:   150.8-174 MHz

                    FCC Designation:   CC3526 (1.8 Watt Models) CC3530 (5 Watt Models)
                      Power Supply:   (1) Mercury Battery, or (1) Rechargeable Nickel-Cadmium Battery





                                   Basic    Extended Duty  5-Wattt    Universal    Remote        Selective Call Unit
                                    Unit      Cycle Unit    Unit        Unit     Speaker-Mic.  2 reed     4 reed
                                                                                                     !
              Dimensions:          6.95x       6.95x       6.95x       6.95x       6.95x
                (less antenna      2.75x       2.75x       2.75x       3.19x       3.19x          6.95x2.75x1.69
                and knobs)          1.16        1.69        1.69        1.69        1.16

              Weight (in ounces);
                NiCd Btty           21.0        28.0        28.5        28.5        25.0      28.5        28.75
                Merc Btty           20.5        27.5        28.0        28.0        24.5      28.0        28.25


              Battery Life:
                NiCd Btty           8 hrs       8 hrs*      8 hrs       8 hrs*      8 hrs      8 hrs*      8 hrs*
                Merc Btty          46 hrs      40 hrs*     40 hrs      40 hrs*     40 hrs     40 hrs*     40 hrs*

              Battery Drain:
                Standby            4.3 ma      4.3 ma      4.3 ma      4.3 ma      4.3 ma     5.8 ma      7.3 ma
                Receive             65 ma       65 ma       65 ma       65 ma       65 ma      65 ma       65 ma
                Transmit           310 ma      310 ma      850 ma      330 ma      330 ma     310 ma      310 ma

             *10-10-80 Duty Cycle; all other models are 5-5-90 Duty Cycle.
             t5 Watts with Nickel-Cadmium Battery only; 2.5 Watts with Mercury Battery.


             NOTE: For “Private Line” coded squelch versions of any model, add:
                   2 oz to weight
                   3.7 ma to standby drain
                   5 ma to receive drain
                   5 ma to transmit drain (Except on 5 watt unit)
                   .63 inches to length
                   Mercury battery life becomes 40 hours.
