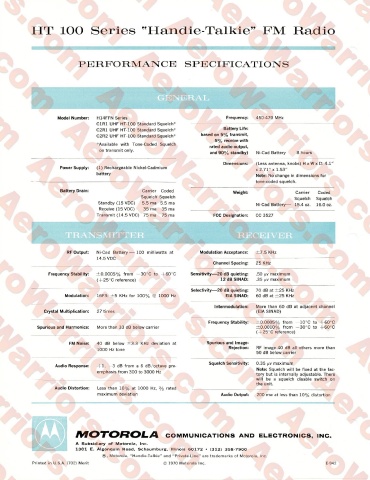

HT 1OO Series "Handie-Talkie” FM Radio





                           PERFORMANCE SPECIFICATIONS









                    Model Number: H14FFN Series                             Frequency:   450-470 MHz
                                 C1R1 UHF HT-100 Standard Squelch*
                                 C2R1 UHF HT-1OO Standard Squelch*         Battery Life:
                                 C2R2 UHF HT-1OO Standard Squelch*   based on 5% transmit,
                                                                        5% receive with
                                 *Available with Tone-Coded Squelch
                                                                      rated audio output,
                                  on transmit only.
                                                                      and 90% standby)  Ni-Cad Battery   8 hours
                                                                           Dimensions:  (Less antenna, knobs) H x W x D: 4.1'
                     Power Supply: (1) Rechargeable Nickel-Cadmium
                                                                                     x 2.71" x 1.53"
                                 battery                                              Note: No change in dimensions for
                                                                                     tone-coded squelch.
                     Battery Drain:             Carrier  Coded                Weight:              Carrier  Coded
                                                Squelch Squelch                                   Squelch  Squelch
                                 Standby (15 VDC)  5.5 ma 5.5 ma                      Ni-Cad Battery— 15.4 oz.  16.0 oz.
                                  Receive (15 VDC)  35 ma  35 ma
                                 Transmit (14.5 VDC) 75 ma  75 ma       FCC Designation: CC 3527






                       RF Output:  Ni-Cad Battery—100 milliwatts at  Modulation Acceptance:  ±7.5 KHz
                                 14.5 VDC
                                                                       Channel Spacing:  25 KHz
                 Frequency Stability:  ±0.0005% from 30°C to + 60 C   Sensitivity—20 dB quieting:  .50 /zv maximum
                                 (+25°C reference)                        12 dB SINAD:  .35 /zv maximum
                                                                Selectivity—20 dB quieting:   70 dB at ±25 KHz
                      Modulation:  16F3: ±5 KHz for 100% @ 1000 Hz          EIA SINAD:  60 dB at ±25 KHz

                                                                        Intermodulation:  More than 60 dB at adjacent channel
               Crystal Multiplication:  27 times                                      (EIA SINAD)
                                                                      Frequency Stability:  ±0.0005% from -10°C to +60°C
             Spurious and Harmonics:  More than 33 dB below carrier                   ±0.0010% from -30°C to 4-60°C
                                                                                      (+25°C reference)
                        FM Noise:  40 dB below ±3.3 KHz deviation at  Spurious and Image-
                                 1000 Hz tone                                Rejection:   RF image 40 dB all others more than
                                                                                      50 dB below carrier
                                                                      Squelch Sensitivity: 0.35 /zv maximum
                   Audio Response:   4 1,   3 dB from a 6 dB/octave pre­
                                 emphasis from 300 to 3000 Hz                         Note: Squelch will be fixed at the fac­
                                                                                      tory but is internally adjustable. There
                                                                                      will be a squelch disable switch on
                                                                                      the unit.
                   Audio Distortion: Less than 10% at 1000 Hz, % rated
                                 maximum deviation                        Audio Output: 200 mw at less than 10% distortion






                          MOTOROLA COMMUNICATIONS AND ELECTRONICS, INC.
                          A Subsidiary of Motorola, Inc.
                          1301 E. Algonquin Road, Schaumburg, Illinois 60172 • (312) 358-7900
                                   ®, Motorola, "Handie-Talkie” and "Private-Line” are trademarks of Motorola, Inc.
            Printed in U.S.A. (702) Merit              © 1970 Motorola Inc.                                  E-942
