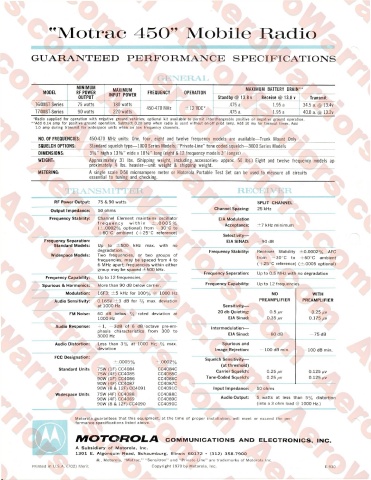

"Motrac 450” Mobile Radio




           GUARANTEED PERFORMANCE SPECIFICATIONS




                          MINIMUM                                                 MAXIMUM BATTERY DRAIN**
               MODEL      RF POWER    MAXIMUM     FREQUENCY   OPERATION
                           OUTPUT    INPUT POWER                         Standby @ 13.8 v  Receive @ 13.8 v  Transmit
                   ____
             T64MST-Series  75 watts   180 watts                             .475 a.       1.95 a    34.5 a. @ 13.4v
                                                 450-470 MHz   ' 1Z VUG
             T74MST-Series  90 watts  220 watts                              .475 a.       1.95 a    40.0 a. @ 13.2v
            *Radio supplied for operation with negative ground vehicles; optional kit available to permit interchangeable positive or negative ground operation.
            *Add 0.14 amp for positive ground operation. Subtract 0.20 amp when radio is used without on-off pilot lamp. Add 10 ma for timeout timer. Add
             1.0 amp during transmit for widespace units when on low frequency channels.
              NO. OF FREQUENCIES:   450-470 MHz units: One, four, eight and twelve frequency models are available—Trunk Mount Only
              SQUELCH OPTIONS:   Standard squelch type—1000 Series Models; “Private-Line” tone coded squelch—3000 Series Models
              DIMENSIONS:      3^zz high x 13%zz wide x 18VVJong (eight & 12 frequency models 3" longer)
              WEIGHT:         Approximately  31 lbs. (Shipping  weight, including accessories: approx. 50 lbs.) Eight and twelve  frequency  models ap­
                               proximately 4 lbs. heavier—unit  weight & shipping weight.
              METERING:       A single scale  0-50 microampere  meter or Motorola Portable Test Set can be used to  measure all  circuits
                               essential to tuning and checking.



                   RF Power Output:  75 & 90 watts                                    SPLIT CHANNEL
                                                                        Channel Spacing:  25 kHz
                  Output Impedance:  50 ohms
                 Frequency Stability:  Channel Element maintains oscillator  EIA Modulation
                                 frequency within ±.0005%                  Acceptance:  ±7 kHz minimum
                                 (±.0002% optional) from —30°C to
                                 + 60 C ambient ( + 25C reference)
                                                                           Selectivity—
                Frequency Separation:                                       EIA SINAD:  90 dB
                   Standard Models:  Up to ±500 kHz max. with no
                                 degradation.                         Frequency Stability:  Receiver Stability ±0.0002% AFC
                  Widespace Models:  Two frequencies, or two groups of                from —30°C to +60°C ambient
                                 frequencies, may be spaced from 4 to
                                 6 MHz apart; frequencies within either               ( + 25°C reference) (±.0005 optional)
                                 group may be spaced ±500 kHz.
                                                                     Frequency Separation:  Up to 0.5 MHz with no degradation
                Frequency Capability:  Up to 12 frequencies
               Spurious & Harmonics:  More than 90 dB below carrier.  Frequency Capability:  Up to 12 frequencies
                       Modulation:  16F3: ±5 kHz for 100% @ 1000 Hz                        NO           WITH
                   Audio Sensitivity:  0.165V ±3 dB for 2/3 max. deviation             PREAMPLIFIER  PREAMPLIFIER
                                 at 1000 Hz                                Sensitivity—
                                                                         20 db Quieting:  0.5 /zv       0.25 /xv
                        FM Noise:  60 dB below 2/3 rated deviation at
                                 1000 Hz                                     EIA Sinad:  0.35 /zv      0.175 /xv
                   Audio Response:  + 1, — 3dB of 6 dB/octave pre-em­  Intermodulation—
                                 phasis characteristics from 300 to
                                 3000 Hz                                     EIA Sinad:    80 dB         75 dB
                   Audio Distortion:  Less than 3% at 1000 Hz; 2/3 max.    Spurious and
                                 deviation                              Image Rejection:  100 dB min.  100 dB min.
                   FCC Designation:                                  Squelch Sensitivity—
                                       ±.0005%       ±.0002%
                                                                          (at threshold)
                    Standard Units  75W (IF) CC4084   CC4084C            Carrier Squelch:  0.25 /xv    0.125 /xv
                                 75W (4F) CC4085     CC4085C
                                 90W (IF) CC4086     CC4086C         Tone-Coded Squelch:  0.25 /zv     0.125 /xv
                                 90W (4F) CC4087     CC4087C
                                 90W (8 & 12F) CC4091  CC4091C          input Impedance:  50 ohms
                   Widespace Units  75W (4F) CC4088  CC4088C
                                 90W (4F) CC4089     CC4089C              Audio Output: 5 watts at less than 5% distortion
                                 90W (8 & 12F) CC4090  CC4090C                        (into a 3 ohm load @ 1000 Hz.)

                          Motorola guarantees that this equipment, at the time of proper installation, will meet or exceed the per­
                          formance specifications listed above.

                          MOTOROLA COMMUNICATIONS AND ELECTRONICS, INC.
                          A Subsidiary of Motorola, Inc.
                          1301 E. Algonquin Road, Schaumburg, Illinois 60172 • (312) 358-7900
                                 (g), Motorola, “Motrac," “Sensitron" and “Private-Line” are trademarks of Motorola Inc.
            Printed in U.S.A. (702) Merit          Copyright 1970 by Motorola, Inc.                          E-930
