Vol. 1
Sec. 3
E-942

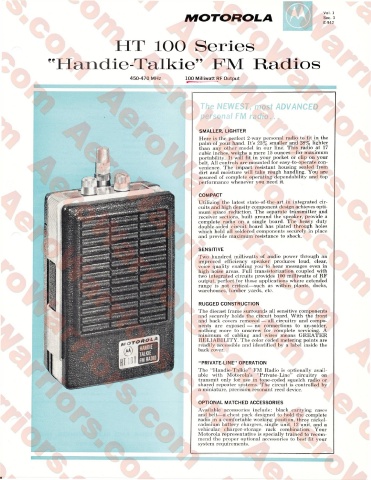

HT 1OO Series

"Handie-Talkie” FM Radios

450-470 MHz 100 Milliwatt RF Output

SMALLER, LIGHTER
Here is the perfect 2-way personal radio to fit in the
palm of your hand. It’s 23% smaller and 28% lighter
than any other model in our line. This radio at 17
cubic inches, weighs a mere 15 ounces—for maximum
portability. It will fit in your pocket or clip on your
belt. All controls are mounted for easy-to-operate con­
venience. The impact resistant housing sealed from
dirt and moisture will take rough handling. You are
assured of complete operating dependability and top
performance whenever you need it.

COMPACT
Utilizing the latest state-of-the-art in integrated cir­
cuits and high density component design achieves opti­
mum space reduction. The separate transmitter and
receiver sections, built around the speaker, provide a
complete radio on a single board. The heavy duty
double-sided circuit board has plated through holes
which hold all soldered components securely in place
and provide maximum resistance to shock.

SENSITIVE
Two hundred milliwatts of audio power through an
improved efficiency speaker produces loud, clear,
voice quality enabling you to hear messages even in
high noise areas. Full transistorization coupled with
two integrated circuits provides 100 milliwatts of RF
output, perfect for those applications where extended
range is not critical—such as within plants, docks,
warehouses, lumber yards, etc.
RUGGED CONSTRUCTION
The diecast frame surrounds all sensitive components
and securely holds the circuit board. With the front
and back covers removed — all circuitry and compo­
nents are exposed — no connections to un-solder,
nothing more to unscrew for complete servicing. A
minimum of cabling and wires means GREATER
RELIABILITY. The color coded metering points are
readily accessible and identified by a label inside the
back cover.

‘ PRIVATE-LINE” OPERATION
The “Handie-Talkie” FM Radio is optionally avail­
able with Motorola’s “Private-Line” circuitry on
transmit only for use in tone-coded squelch radio or
shared repeater systems. The circuit is controlled by
a miniature, precision resonant reed device.

OPTIONAL MATCHED ACCESSORIES
Available accessories include: black carrying cases
and belt—a chest pack designed to hold the complete
radio in a comfortable working position, three nickel­
cadmium battery chargers, single unit, 12 unit, and a
vehicular charger-storage rack combination. Your
Motorola representative is specially trained to recom­
mend the proper optional accessories to best fit your
system requirements.
