P. 10

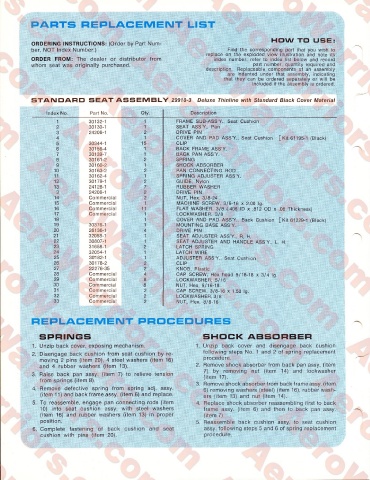

PARTS REPLACEMENT LIST
HOW TO USE:
ORDERING INSTRUCTIONS: (Order by Part Num
ber, NOT Index Number.) Find the corresponding part that you wish to
replace on the exploded view illustration and note its
ORDER FROM: The dealer or distributor from index number; refer to index list below and record
whom seat was originally purchased. part number, quantity required and
description. Replaceable components of an assembly
are indented under that assembly, indicating
that they can be ordered separately or will be
included if the assembly is ordered.
STANOARO SEAT ASSEMBLY 29910-3 Deluxe Thinline with Standard Black Cover Material
Index No. Part No. Qty. Description
1 30132-1 1 FRAME SUB-ASS’Y., Seat Cushion
2 30130-1 1 SEAT ASS’Y., Pan
3 24208-1 2 DRIVE PIN
4 1 COVER AND PAD ASS’Y., Seat Cushion [Kit 61195-1 (Black)
5 30344-1 15 CLIP
6 30156-4 1 BACK FRAME ASS’Y.
7 30139-7 1 BACK PAN ASS’Y.
8 30161-2 2 SPRING
9 30160-2 1 SHOCK ABSORBER
10 30163-2 2 PAN CONNECTING ROD
11 30162-4 1 SPRING ADJUSTER ASS’Y.
12 30179-1 2 GUIDE, Nylon
13 24128-1 7 RUBBER WASHER
3 24208-1 2 DRIVE PIN
14 Commercial 2 NUT, Hex. 3/8-24
15 Commercial 1 MACHINE SCREW, 3/8-16 x 2.00 Ig.
16 Commercial 11 FLAT WASHER, 3/8 (.406 ID x .812 OD x .06 Thickness)
17 Commercial 1 LOCKWASHER, 3/8
18 1 COVER AND PAD ASS’Y., Back Cushion [Kit 61229-1 (Black)
19 30376-1 1 MOUNTING BASE ASS’Y.
20 26136-1 4 DRIVE PIN
21 32058-1 1 SEAT ADJUSTER ASS’Y., R. H.
22 30807-1 1 SEAT ADJUSTER AND HANDLE ASS’Y., L. H
23 31658-1 2 LATCH SPRING
24 32054-1 1 LATCH WIRE
25 30*182-1 1 ADJUSTER ASS’Y., Seat Cushion
26 30178-2 2 CLIP
27 22276-35 2 KNOB, Plastic
28 Commercial 4 CAP SCREW, Hex head 5/16-18 x 3/4 Ig.
29 Commercial 8 LOCKWASHER, 5/16
30 Commercial 8 NUT, Hex. 5/16-18
31 Commercial 2 CAP SCREW, 3/8-16 x 1.50 Ig.
32 Commercial 2 LOCKWASHER, 3/8
33 Commercial 2 NUT, Hex. 3/8-16
REPLACEMENT PROCEDURES
SPRINGS SHOCK ABSORBER
1. Unzip back cover, exposing mechanism. 1. Unzip back cover and disengage back cushion
following steps No. 1 and 2 of spring replacement
2. Disengage back cushion from seat cushion by re
moving 2 pins (item 20), 4 steel washers (item 16) procedure.
and 4 rubber washers (item 13). 2. Remove shock absorber from back pan assy, (item
7) by removing nut (item 14) and lockwasher
3. Raise back pan assy, (item 7) to relieve tension (item 17).
from springs (item 8).
3. Remove shock absorber from back frame assy, (item
4. Remove defective spring from spring adj. assy, 6) removing washers (steel) (item 16), rubber wash
(item 11) and back frame assy, (item 6) and replace. ers (item 13) and nut (item 14).
5. To reassemble, engage pan connecting rods (item 4. Replace shock absorber reassembling first to back
10) into seat cushion assy, with steel washers frame assy, (item 6) and then to back pan assy,
(item 16) and rubber washers (item 13) in proper (item 7).
position. 5. Reassemble back cushion assy, to seat cushion
6. Complete fastening of back cushion and seat assy, following steps 5 and 6 of spring replacement
cushion with pins (item 20). procedure.
