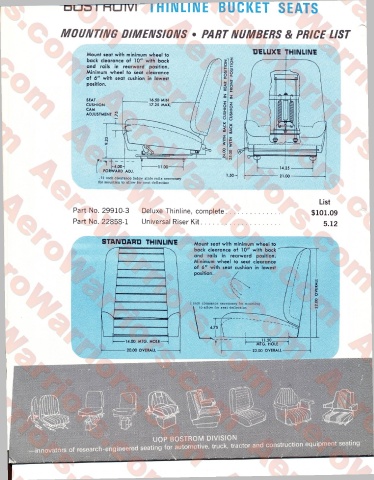

Page 13 - Combined_34_OCR

SEATS

MOUNTING DIMENSIONS • PART NUMBERS & PRICE LIST

DELUXE THINLINE
Mount seat with minimum wheel to
back clearance of 10" with back
and rails in rearward position. POSITION POSITION
Minimum wheel to seat clearance
of 6" with seat cushion in lowest
REAR FRONT
position.
/ IN
/ IN
SEAT 16.50 MIN /
CUSHION 17.25 MAX.
CAM CUSHION CUSHION
-1 .7 5
ADJUSTMENT
BACK BACK
WITH WITH
h ---------SZ 6
,24.00 25.00
ptl” i I
| FORWARD ADJ. 11.00----------- H 14.25
1.50-H 21.00
.75 inch clearance below slide rails necessary
for mounting to allow for seat deflection

List
Part No. 29910-3 Deluxe Thinline, complete $101.09

Part No. 22858-1 Universal Riser Kit 5.12

STANDARD THINLINE Mount seat with minimum wheel to
back clearance of 10" with back
and rails in rearward position.
Minimum wheel to seat clearance
of 6" with seat cushion in lowest
position.
OVERALL

1 inch clearance necessary for mounting 22.00
I to allow for seat deflection

20.00 OVERALL 23.00 OVERALL
