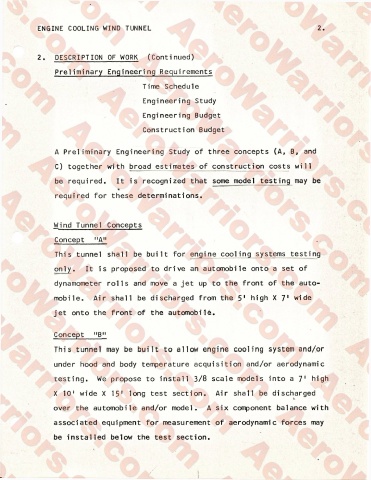

ENGINE COOLING WIND TUNNEL                                                                   2




                   DESCRIPTION OF WORK (Conti nued)
              CM
                   Pre1imina             ineering Requirement         (/)

                                                Time Schedule

                                                 Engineering Study

                                                Engineering Budget

                                                Construction Budget



                   A Preliminary Engineering Study of three concepts (A, B, and

                   C) together with broad estimates of construction costs will

                   be required. It is recognized that some model testing may be

                   required for these determinations.




                   Wind Tunnel

                   Concept

                   This tunnel shall be built for engine cooling systems testing

                   only. It is proposed            to drive an automobile onto a               set of

                   dynamometer rolls and           move a jet up to the front of the auto-

                   mob i1e.     Air shall      be  discharged from the 5* high X               71 wi de

                   jet onto     the front of       the automobile



                                   CD  H

                   This tunnel may be built to allow engine cooling system and/or

                   under hood and body temperature acquisition and/or aerodynamic

                   testing. We propose to install 3/8 scale models into a 7' high

                   X 10' wide X 15’ long test section. Air shall be discharged

                   over the automobile and/or model.                     six component balance with

                   associated equipment for measurement  of aerodynamic forces may

                   be installed below the test section.
