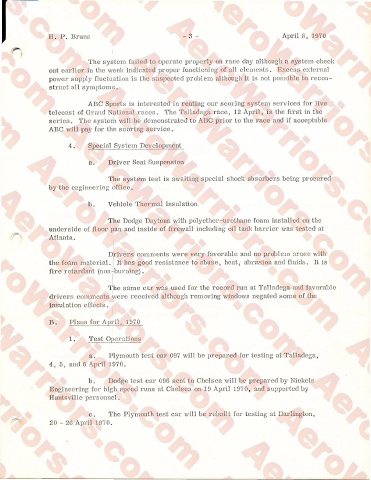

H. P. Bruns - 3 - April 8, 1970

The system failed to operate properly on i ace day although a system check
out earlier in the week indicated proper functionin of all elements. Excess external
power supply fluctuation is the suspected problem although it is not possible to recon­
struct all symptoms.

ABC Sports is interested in renting our scoring system services for live
telecast of Grand National races. The Talladega race, 12 April, is the first in the
series. The systerh will be demonstrated to ABC prior to the race and if acceptable
ABC will pay for the scoring service.

4 • Special System Development

a. Driver Seat Suspension

The system test is awaiting special shock absorbers being procured
by the engineering office.

b. Vehicle Thermal Insulation

The Dodge Daytona with poly ether-urethane foam installed on the
underside of floor pan and inside of firewall including oil tank barrier was tested at
Atlanta.

Drivers comments were very favorable and no problem arose with
the foam material.' It has good resistance to abu C O C D heat, abrasion and fluids. It is
fire retardant (non-burning).

The same car was used for the record run at Talladega and favorable
drivers comments were received although removing windows negated some of the
insulation effects.

B. Plans for April, 1970

1. Test Operations

a. Plymouth test car 097 will be prepared for testing at Talladega,
4,5, and 6 April 1970.

b. Dodge test car 096 sent to Chelsea will be prepared by Nickels
Engineering for high speed runs at Chelsea on 19 April 1970, and supported by
Huntsville personnel.

c. The Plymouth test car will be rebuilt for testing at Darlington,
20 - 26 April 1970.
