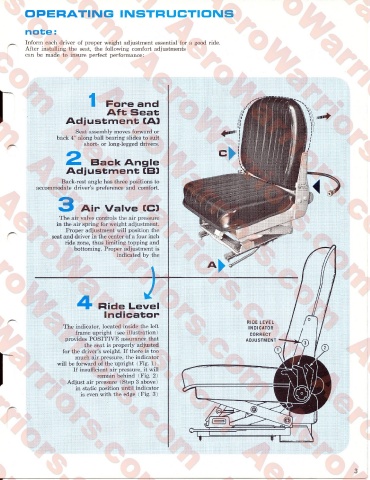

OPERATING INSTRUCTIONS

note:
Inform each driver of proper weight adjustment essential for a good ride.
After installing the seat, the following comfort adjustments
can be made to insure perfect performance:

Fore and
Aft Seat
Adjustment CAI

Seat assembly moves forward or
back 4" along ball bearing slides to suit
short- or long-legged drivers.

2 Back Angle
Adjustment (B)
■ '
Back-rest angle has three positions to
accommodate driver’s preference and comfort.

Air Valve (CJ
The air valve controls the air pressure
in the air spring for weight adjustment.
Proper adjustment will position the
seat and driver in the center of a four inch
ride zone, thus limiting topping and
bottoming. Proper adjustment is
indicated by the

Ride Level
Indicator

The indicator, located inside the left
frame upright (see illustration)
provides POSITIVE assurance that
the seat is properly adjusted
for the driver’s weight. If there is too
much air pressure, the indicator
will be forward of the upright (Fig. 1).
If insufficient air pressure, it will
remain behind (Fig. 2)
Adjust air pressure (Step 3 above)
in static position until indicator
is even with the edge (Fig. 3)
