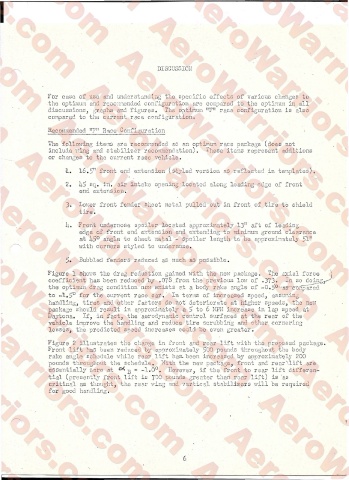

For ease of use and understanding the specific effects of various changes’to
                  the optimum, and recommended configuration are compared to the optimum in all
                  discussions, graphs and figures. The optimum nFn race configuration is also
                  compared to the current race configurationo

                  Recommended nFn Race Configuration

                  The following items are recommended as an optimum race package (does not
                  include wing and stabilizer recommendation). These items represent additions
                  or changes to the current race vehicle.

                        1.   l6.£n front end extension (styled version as reflected in templates),
                                              i
                        ■2.      sq. in. air intake opening located along leading edge of front
                             end extension.
                             Lower front fender sheet metal pulled out in front of tire to shield
                             tire.

                             Front undernose spoiler located approximately 13” aft of leading
                             edge of front end extension and extending to minimum ground clearance
                             at Li.^0 angle to sheet metal - spoiler length to be approximately 5>ln
                             with corners styled to undernose.

                             Bubbled fenders reduced as much as possible.

                  Figure 1 shows the drag reduction gained with the new package. The axial force
                  coefficient has been reduced by .078,from the previous low of .373• In so doings
                  the optimum drag condition now exists at a body rake angle of -0.>°---as^-rompared
                  to -l.£° for the current race car. In terms of increased speed, assuming
                  handling, tires, and other factors do not deteriorate at higher speeds, the new
                  package should result in approximately a p to 6 MPH increase in lap speed at
                  Daytona. If, in fact, the aerodynamic control surfaces at the rear of the
                  vehicle improve the handling and reduce tire scrubbing and other cornering
                  losses, the predicted speed increases could be even greater.

                  Figure 2 illustrates the change in front and rear lift with the proposed package.
                  Front lift has been reduced by approximately p00 pounds throughout the body
                  rake angle schedule while rear lift has. been increased by approximately 200
                  pounds throughout the schedule. With the new package, front and rearllift are
                  essentially zero at g = -1.0°. However, if the front to rear lift differen­
                  tial (presently front lift is 700 pounds greater than rear lift) is 'as
                  critical as thought, the rear wing and vertical stabilizers will be required
                  for good handling.
