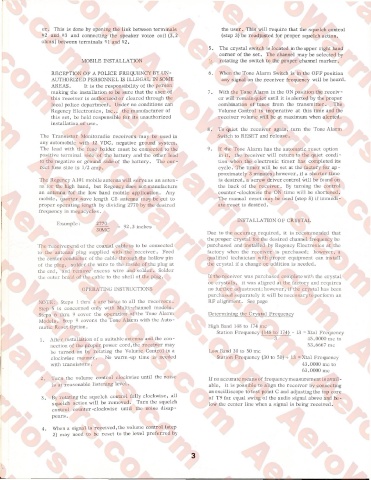

er. This is done by opening the link between terminals     the user. This will require that the squelch control
               #2 and #3 and connecting the speaker voice coil (3.2       (step 3) be readjusted for proper squelch action.
               ohms) between terminals #1 and #2.
                                                                      5.  The crystal switch is located in the upper right hand
                                                                          corner of the set. The channel may be selected by
                            MOBILE INSTALLATION                           rotating the switch to the proper channel marker.

                  RECEPTION OF A POLICE FREQUENCY BY UN­              6.  When the Tone Alarm Switch is in the OFF position
                  AUTHORIZED PERSONNEL IS ILLEGAL IN SOME                 any signal on the receiver frequency will be heard.
                  AREAS. It is the responsibility of the person
                  making the installation to be sure that the user of   7.  With the Tone Alarm in the ON position the receiv­
                  this receiver is authorized or cleared through the     er will remain quiet until it is alerted by the proper
                  local police department. Under no conditions can       combination of tones from the transmitter. The
                  Regency Electronics, Inc., the manufacturer of         Volume Control is inoperative at this time and the
                  this set, be held responsible for its unauthorized     receiver volume will be at maximum when alerted.
                  installation or use.
                                                                      8.  To quiet the receiver again, turn the Tone Alarm
              The Transistor Monitoradio receivers may be used in        Switch to RESET and release.
              any automobile with 12 VDC, negative ground system.
              The lead with the fuse holder must be connected to the   9.  If the Tone Alarm has the automatic reset option
              positive terminal side of the battery and the other lead   in it, the receiver will return to the quiet condi­
              to the negative or ground side of the battery. The cor­    tion when the electronic timer has completed its
              rect fuse size is 1/2 amp.                                 cycle. The timer will be set at the factory for ap -
                                                                         proximately 3 minutes; however, if a shorter time
              The Regency A101 mobile antenna will serve as an anten­    is desired, a screw driver control will be found on
              na for the high band, but Regency does not: manufacture    the back of the receiver. By turning the control
              an antenna for the low band mobile application. Any        counter-clockwise the ON time will be shortened.
              mobile, quarter wave length CB antenna maiy be cut to      The manual reset may be used (step 8) if immedi­
              proper operating length by dividing 2770 by the desired    ate reset is desired.
              frequency in megacycles .
                                                                                INSTALLATION OF CRYSTAL
                    Example:     2770
                                          92.3 inches
                                 30MC
                                                                      Due to the accuracy required, it is recommended that
                                                                      the proper crystal for the desired channel frequency be
             The receiver end of the coaxial cable is to be connected   purchased and installed by Regency Electronics at the
             to the antenna plug supplied with the receiver. Feed     factory when the receiver is purchased; however, a
              the center conductor of the cable through the hollow pin   qualified technician with proper equipment can install
              of the plug, solder the wire to the inside of the plug at   the crystal if a change or addition is needed.
              the end, and remove excess wire and solder. Solder
              the outer braid of the cable to the shell of the plug.  If the receiver was purchased complete with the crystal
                                                                      or crystals, it was aligned at the factory and requires
                            OPERATING INSTRUCTIONS                    no further adjustment; however, if the crystal has been
                                                                      purchased separately it will be necessary to perform an
              NOTE : Steps 1 thru 4 are basic to all the receivers .   RF alignment. See page
              Step 5 is concerned only with Multi-channel models.
              Steps 6 thru 9 cover the operation of the Tone Alarm    Determining the Crystal Frequency
              Models. Step 9 covers the Tone Alarm with the Auto­
              matic Reset Option.                                     High Band 148 to 174 me
                                                                         Station Frequency (148 to 174) - 13 = Xtal Frequency
              1.  After installation of a suitable antenna and the con­                     3          45.0000 me to
                  nection of the proper power cord,the receiver may                                    53.6667 me
                  be turned on by rotating the Volume Control in a    Low Band 30 to 50 me
                  clockwise manner. No warm-up time is needed            Station Frequency (30 to 50) + 13 = Xtal Frequency
                  with transistors.                                                                  43.0000 me to
                                                                                                     63.0000 me
              2.  Turn the volume control clockwise until the noise   If no accurate means of frequency measurement is avail -
                  is at reasonable listening level.                   able, it is possible to align the receiver by connecting
                                                                      anoscilliscope to test point C and adjusting the top core
               3.  By rotating the squelch control fully clockwise, all   of T9 for equal swing of the audio signal above and be­
                  squelch action will be removed. Turn the squelch    low the center line when a signal is being received.
                  control counter -clockwise until the noise disap­
                  pears .
               4.  When a signal is received,the volume control (step
                   2) may need to be reset to the level preferred by



                                                                3
